BTAH CNC Turning Tools For Automatic Lathes

BTAH CNC Turning Tools For Automatic Lathes

Add Inquiry

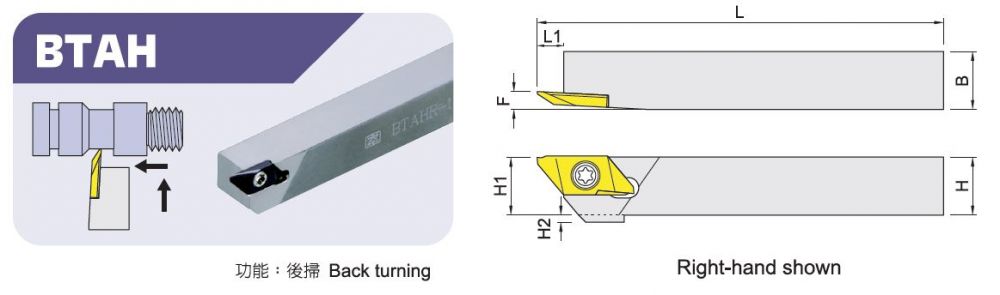

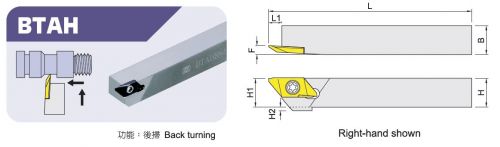

Item code Dimensions,mm Insert Screw Wrench Weight
(KG)
H(H1) B L L1 F H2  Screw  Wrench
BTAHR/L-1010K-50 10 10 125 5.5 3.5 2 BTAT5528..R/L-B
BTAT6035..R/L-B
MS4009A ETF15 0.10
BTAHR/L-1212K-50 12 12 125 5.5 3.5 -- MS4011A 0.14
BTAHR/L-1616K-50 16 16 125 5.5 3.5 -- 0.25

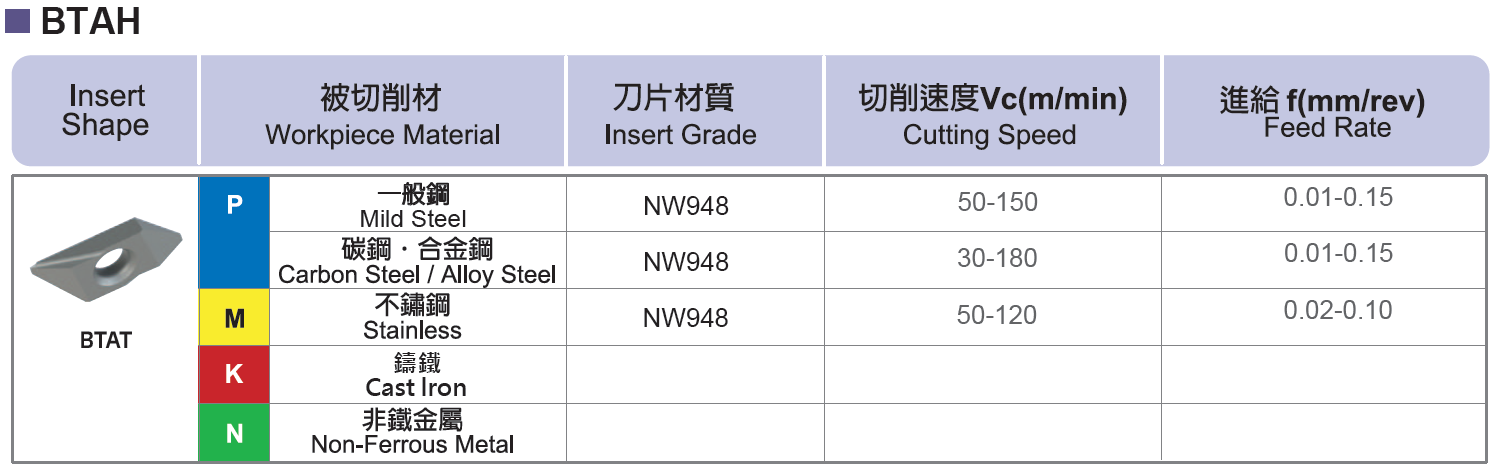

被切削材
Workpiece material
Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N

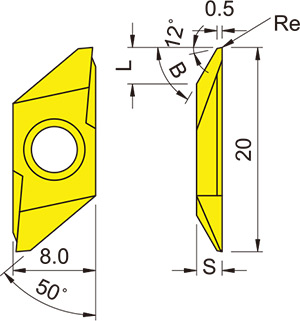

Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層
NW948 B L S RE
Insert Shape BTAT552800R-B
  55 2.8 2.5 0.0
BTAT552801R-B   0.1
BTAT603500R-B   60 3.5 0.0
BTAT603501R-B   0.1
BTAT653501L-B   0.1
BTAT604500R-B   4.5 0.0
BTAT604501R-B   0.1
