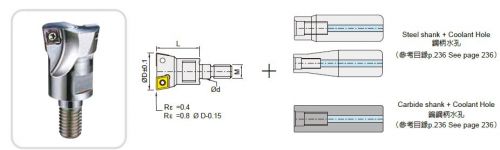

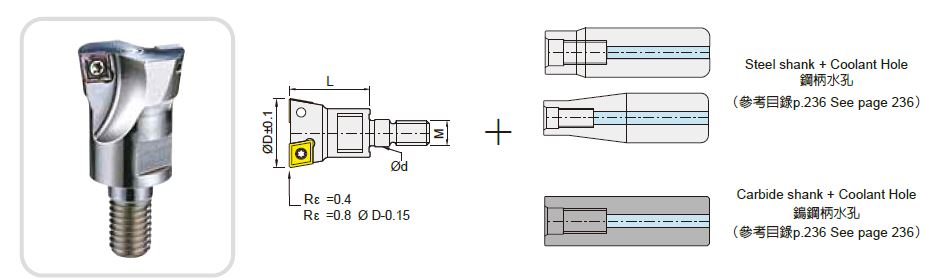

TB Modular

TB Modular

Add Inquiry
ltem code Dimensions,mm Teeth Insert
Insert
Screw
Screw
Wrench
Wrench
Weight
(KG)
D d L M
TB13-MD11 12.8 6.5 18 M6 1 CC..060204 MS2506A ETF09 0.03
TB14-MD11 13.8 0.03
TB15-MD11 14.8 0.03
TB16-MD11 15.8 2 0.03
TB16-MD11-M08 15.8 8.5 20 M8 2 0.03
TB18-MD15-M08 17.8 8.5 23 M8 0.04
TB20-MD14-M08 19.8 0.05
TB20-MD19-M10 19.8 10.5 30 M10 0.07
TB22-MD19-M10 21.8 0.08
TB25-MD19-M10 24.8 0.09
