TB Fixed Rough Boring Bars, Boring Tool

TB Fixed Rough Boring Bars

Add Inquiry
Item code
(d=22.0)
Item code
(d=25.4)
Insert
Insert
Item code
(d=22.0,25.4)
Insert
Insert
D
Rε=0.4
Teeth
TB45-22.0-CC09 TB50-25.4-CC09 CC..09T304   CC..120404 44.8 2
TB46-22.0-CC09 45.8
TB47-22.0-CC09 46.8
TB48-22.0-CC09 47.8
TB49-22.0-CC09 48.8
TB50-22.0-CC09 49.8
TB51-22.0-CC09 TB51-25.4-CC09 CC..09T304   CC..120404 50.8 2
TB52-22.0-CC09 TB52-25.4-CC09 51.8
TB53-22.0-CC09 TB53-25.4-CC09 52.8
TB54-22.0-CC09 TB54-25.4-CC09 53.8
TB55-22.0-CC09 TB55-25.4-CC09 TB55-22.0-CC12 54.8
TB56-22.0-CC09 TB56-25.4-CC09 CC..09T304 TB56-22.0-CC12 CC..120404 55.8 2
TB57-22.0-CC09 TB57-25.4-CC09 TB57-22.0-CC12 56.8
TB58-22.0-CC09 TB58-25.4-CC09 TB58-22.0-CC12 57.8
TB59-22.0-CC09 TB59-25.4-CC09 TB59-22.0-CC12 58.8
TB60-22.0-CC09 TB60-25.4-CC09 TB60-22.0-CC12 59.8
TB61-22.0-CC09 TB61-25.4-CC09 CC..09T304 TB61-25.4-CC12 CC..120404 60.8 2
TB62-22.0-CC09 TB62-25.4-CC09 TB62-25.4-CC12 61.8
TB63-22.0-CC09 TB63-25.4-CC09 TB63-25.4-CC12 62.8
TB64-22.0-CC09 TB64-25.4-CC09 TB64-25.4-CC12 63.8
TB65-22.0-CC09 TB65-25.4-CC09 TB65-25.4-CC12 64.8
TB66-22.0-CC09 TB66-25.4-CC09 CC..09T304 TB66-25.4-CC12 CC..120404 65.8 2
TB67-22.0-CC09 TB67-25.4-CC09 TB67-25.4-CC12 66.8
TB68-22.0-CC09 TB68-25.4-CC09 TB68-25.4-CC12 67.8
TB69-22.0-CC09 TB69-25.4-CC09 TB69-25.4-CC12 68.8
TB70-22.0-CC09 TB70-25.4-CC09 TB70-25.4-CC12 69.8
TB71-22.0-CC09 TB71-25.4-CC09 CC..09T304 TB71-25.4-CC12 CC..120404 70.8 2
TB72-22.0-CC09 TB72-25.4-CC09 TB72-25.4-CC12 71.8
   TB73-25.4-CC09 TB73-25.4-CC12 72.8
TB74-25.4-CC09 TB74-25.4-CC12 73.8
TB75-22.0-CC09 TB75-25.4-CC09 TB75-25.4-CC12 74.8
      TB76-25.4-CC09 CC..09T304 TB76-25.4-CC12 CC..120404 75.8 2
TB77-25.4-CC09 TB77-25.4-CC12 76.8
TB78-25.4-CC09 TB78-25.4-CC12 77.8
TB79-25.4-CC09 TB79-25.4-CC12 78.8
TB80-25.4-CC09 TB80-25.4-CC12 79.8



Item code
(d=25.4)
Insert
Insert
Item code
(d=25.4)
Item code
(d=31.75)
Insert
Insert
D
Rε=0.4
Teeth
TB81-25.4-CC09 CC..09T304 TB81-25.4-CC12   CC..120404 80.8 2
TB82-25.4-CC09 TB82-25.4-CC12 81.8
  TB83-25.4-CC12 82.8
TB84-25.4-CC09 TB84-25.4-CC12 83.8
TB85-25.4-CC09 TB85-25.4-CC12 84.8
TB86-25.4-CC09 CC..09T304 TB86-25.4-CC12   CC..120404 85.8 2
  TB87-25.4-CC12 86.8
TB88-25.4-CC09 TB88-25.4-CC12 87.8
  TB89-25.4-CC12 88.8
TB90-25.4-CC09 TB90-25.4-CC12 89.8
  CC..09T304 TB91-25.4-CC12   CC..120404 90.8 2
TB92-25.4-CC09 TB92-25.4-CC12 91.8
  TB93-25.4-CC12 92.8
TB94-25.4-CC09 TB94-25.4-CC12 93.8
TB95-25.4-CC09 TB95-25.4-CC12 94.8
TB96-25.4-CC09 CC..09T304 TB96-25.4-CC12   CC..120404 95.8 2
  TB97-25.4-CC12 96.8
TB98-25.4-CC09 TB98-25.4-CC12 97.8
  TB99-25.4-CC12 98.8
TB100-25.4-CC09 TB100-25.4-CC12 TB100-31.75-CC12 99.8
    CC..09T304 TB101-25.4-CC12 TB101-31.75-CC12 CC..120404 100.8 2
TB102-25.4-CC12 TB102-31.75-CC12 101.8
   TB103-31.75-CC12 102.8
TB104-31.75-CC12 103.8
TB105-25.4-CC09 TB105-25.4-CC12 TB105-31.75-CC12 104.8




TB108-25.4-CC09

CC..09T304




TB108-25.4-CC09

TB106-31.75-CC12 CC..120404 105.8 2
TB107-31.75-CC12 106.8
TB108-31.75-CC12 107.8
    TB109-31.75-CC12 108.8
TB110-25.4-CC09 TB110-25.4-CC12 TB110-31.75-CC12 109.8
  CC..09T304   TB111-31.75-CC12 CC..120404 110.8 2
TB112-25.4-CC09 TB112-25.4-CC12 TB112-31.75-CC12 111.8
      TB113-31.75-CC12 112.8
TB114-31.75-CC12 113.8
TB115-25.4-CC09 TB115-25.4-CC12 TB115-31.75-CC12 114.8
  CC..09T304    TB116-31.75-CC12 CC..120404 115.8 2
TB117-31.75-CC12 116.8
TB118-25.4-CC12 TB118-31.75-CC12 117.8
  TB119-31.75-CC12 118.8
TB120-25.4-CC09 TB120-25.4-CC12 TB120-31.75-CC12 119.8
  CC..09T304   TB121-31.75-CC12 CC..120404 120.8 2
TB122-25.4-CC09  TB122-31.75-CC12 121.8
  TB123-31.75-CC12 122.8
TB124-31.75-CC12 123.8
TB125-31.75-CC12 124.8
      TB126-31.75-CC12 CC..120404 125.8 2
TB127-31.75-CC12 126.8
TB128-31.75-CC12 127.8
TB129-31.75-CC12 128.8
TB130-31.75-CC12 129.8



Insert Screw

Wrench
CC..060204 MS2506A ETF09
CC..09T304 MS4011A ETF15
CC..120404 MS5011A ETF20



Dimensions,mm d M L
TB...-22.0-... 22.0 11 50
TB...-25.4-... 25.4 13 50
TB...-31.75-... 31.75 13 50>

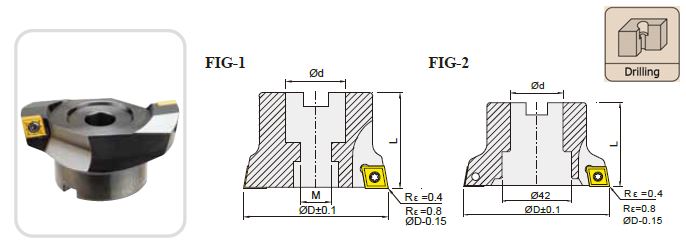

FIG-1 ltem code
(d=31.75)
ltem code ltem code lnsert
Insert
D
Rε=0.4
Teeth
TB131-31.75-CC12             CC..120404 130.8 2
TB132-31.75-CC12 131.8
TB133-31.75-CC12 132.8
TB134-31.75-CC12 133.8
TB135-31.75-CC12 134.8
TB136-31.75-CC12             CC..120404 135.8 2
TB137-31.75-CC12 136.8
TB138-31.75-CC12 137.8
TB139-31.75-CC12 138.8
TB140-31.75-CC12 139.8
TB141-31.75-CC12             CC..120404 140.8 2
TB142-31.75-CC12 141.8
TB143-31.75-CC12 142.8
TB144-31.75-CC12 143.8
TB145-31.75-CC12 144.8
TB146-31.75-CC12             CC..120404 145.8 2
TB147-31.75-CC12 146.8
TB148-31.75-CC12 147.8
TB149-31.75-CC12 148.8
TB150-31.75-CC12 149.8
TB151-31.75-CC12           CC..120404 150.8 2
TB155-31.75-CC12 154.8
TB156-31.75-CC12 155.8
TB160-31.75-CC12 159.8
TB161-31.75-CC12           CC..120404 160.8 2
TB165-31.75-CC12 164.8
TB170-31.75-CC12 169.8
TB175-31.75-CC12           CC..120404 174.8 2
TB185-31.75-CC12 184.8
TB187-31.75-CC12 186.8
TB190-31.75-CC12 189.8
TB195-31.75-CC12         CC..120404 194.8 2
TB200-31.75-CC12 199.8
TB201-31.75-CC12 200.8

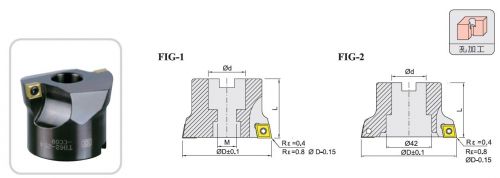

FIG-2 ltem code
(d=31.75)
ltem code ltem code lnsert
Insert
D
Rε=0.4
Teeth
TB100-31.75-CC12F             CC..120404 99.8 2
TB105-31.75-CC12F 104.8
TB110-31.75-CC12F 109.8
TB115-31.75-CC12F 114.8
TB120-31.75-CC12F 119.8



Insert Screw
Wrench
CC..060204 MS2506A ETF09
CC..09T304 MS4011A ETF15
CC..120404 MS5011A ETF20





Dimensions,mm d M L
TB...-22.0-... 22.0 11 50
TB...-25.4-... 25.4 13 50
TB...-31.75-... 31.75 13 50
