BJ/BH Boring Shank

BJ/BH Boring Shank

Add Inquiry

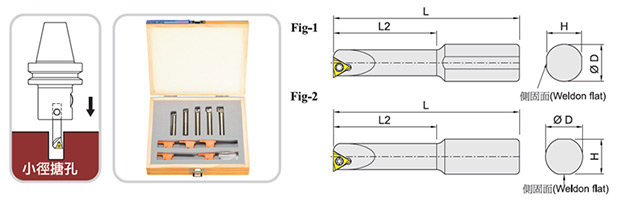

FIG-1

Item code

Fig-2

Item code

Dimensions,mm Insert Screw
Screw
Wrench
Wrench
Weight
(KG)
D Range L L2 H
BJ1008-32   10 8-10 64 32 9 WC..0201.. MS2004A ETF06 0.04
BJ1010-40 10-12 72 40 WB..0601 MS2005A 0.04
  BJ10B06-12 6-8 64 12 TB..0601 MS2003A 0.04
BJ10B06-24 6-8 64 24     0.04
BJ1008-32 BJ10B08-32 8-10 64 32 TB..0601.. MS2004A 0.04
BJ1010-40 BJ10B10-40 10-12 72 40 MS2005A 0.04
BJ1012-45 BJ10B12-45 12-16 77 22 TP..0902.. MS2506A ETF09 0.05
BJ1016-45 BJ10B16-45 16-20 77 22   0.05
  BJ10B20-45 20-25 77 25 0.05
BJ1020-45   20-25 77 27 TP..1103.. MS3008A 0.05
※BH10-5PCS BH1008-32,BH1010-40,BJ1012-45,BJ1016-45,BJ1020-45   0.66
※BJ10-5PC BJ1008-32,BJ1010-40,BJ1012-45,BJ1016-45,BJ1020-45   0.66
  ※BJ10B-6PCS BJ10B06-24,BJ10B08-32,BJ10B10-40,BJ10B12-45,BJ10B16-45,BJ10B20-45 0.64

※Suite
