CCT T-Slot End Milling Cutter, Cutting Mills

CCT T-Slot End Milling Cutter

Add Inquiry



Metric

ltem code Dimensions,mm Teeth Insert Screw Wrench Weight
(KG)
D d d1 L L1 M  Screw  Wrench
CCT12-08006-22.0 80 22.0 48 40 12 11 6 CCMT080304 MS3008A ETF09 0.64



Inch

ltem code Dimensions,mm Teeth Insert Screw Wrench Weight
(KG)
D d d1 L L1 M  Screw  Wrench
CCT08-10008-25.4 100 25.4 60 50 8 13 8 CCMT060204 MS2506A ETF09 1.17
CCT10-12510-31.75 125 31.75 70 50 10 13 10 1.75
CCT12-12510-31.75 125 31.75 70 50 12 13 10 2.15

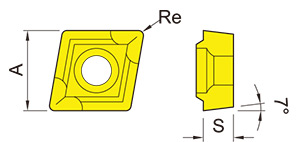

Description GRADE Insert Shape Dimensions,mm
NM304 NW948 A S Re
CCMT060204   6.35 2.38 0.4
CCMT080304   7.94 3.18 0.4
CCMT09T308   9.525 3.97 0.8
CCMT120408   12.7 4.76 0.8
