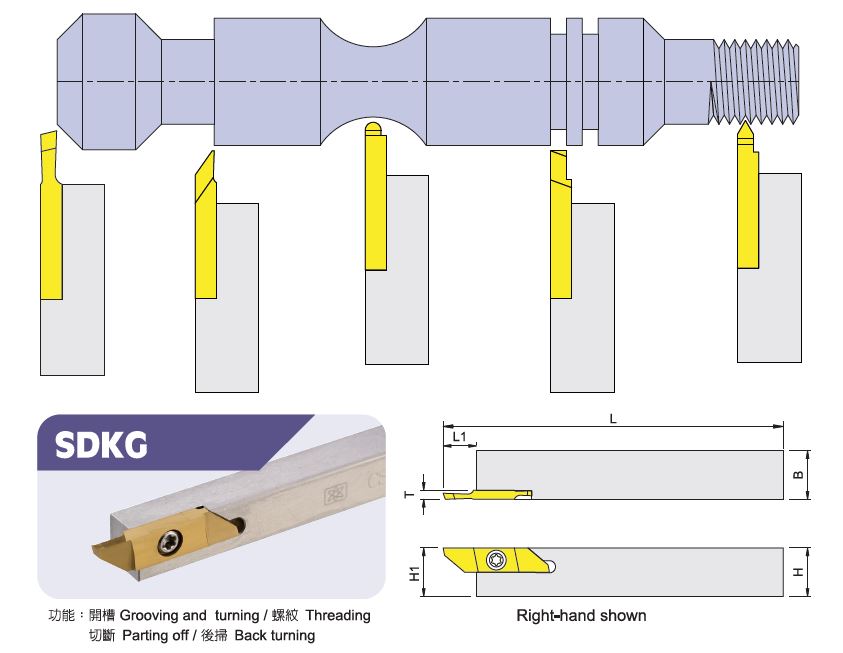

SDKG Drehwerkzeuge für Drehautomaten

SDKG Drehwerkzeuge für Drehautomaten

Anfrage hinzufügen
Produkt-Spezifikationen
Produktcode Abmessungen, mm Einfügen Schraube Schlüsse Gewicht
(KG)
H B L L1 T
SDKGR/L-1010K-353 10 10 125 11 3 DK..3.. MS4009A ETF15 0.10
SDKGR/L-1212M-353 12 12 150 11 3 0.17
SDKGR/L-1616M-353 16 16 150 11 3 0.30
SDKGR/L-2020K-353 20 20 125 11 3 0.42
SDKGR/L-2525M-353 25 25 150 11 3 0.74
SDKGR/L-1010K-354 10 10 125 11 4 DK..4.. MS4009A ETF15 0.10
SDKGR/L-1212M-354 12 12 150 11 4 MS4011A 0.17
SDKGR/L-1616M-354 16 16 150 11 4 0.30
SDKGR/L-2020K-354 20 20 125 11 4 0.42
SDKGR/L-2525M-354 25 25 150 11 4 0.74





Werkstück material Stahl P
Edelstahl M
Gusseisen K
NE-Metall N
Form einfügen Beschreibung GRADE Abmessungen, mm
Beschichtetes Unbeschichtet
GT29 GA49 GX06 S W Re L2 K Pitch
(mm)

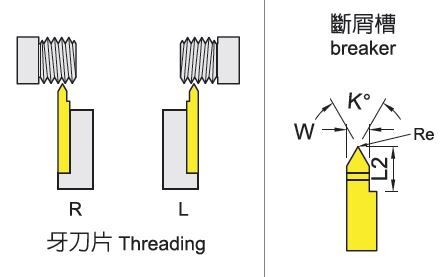

DKTR-4305510 4 3.0 0.1 6 55 0.1-3
DKTR-4206005 2.0 0.05 60 0.05-2
DKTR-4306010 3.0 0.1 0.1-3
DKTR-4206005 2.0 0.05 0.05-2
DKTL-4306010 3.0 0.1 0.1-3
DKTL-4306020       3.0 0.2 0.2-3

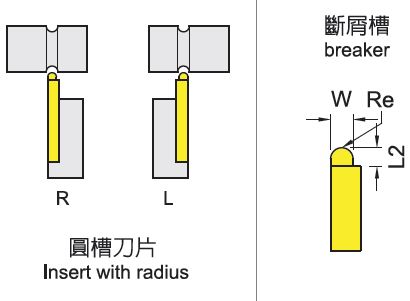

DKRR-4050R25 4 1.0 0.50 2.5
DKRR-4075R50 1.5 0.75 5.0
DKRR-4100R60 2.0 1.00 6.0
DKRR-4125R80 2.5 1.25 8.0
DKRR-4150R80 3.0 1.50 8.0
DKRR-4175RA0 3.5 1.75 10.0
DKRR-4200RA0 4.0 2.00 10.0
DKRL-4050R25 4 1.0 0.50 2.5
DKRL-4075R50 1.5 0.75 5.0
DKRL-4100R60 2.0 1.00 6.0
DKRL-4125R80 2.5 1.25 8.0
DKRL-4150R80 3.0 1.50 8.0
DKRL-4175RA0 3.5 1.75 10.0
DKRL-4200RA0 4.0 2.00 10.0

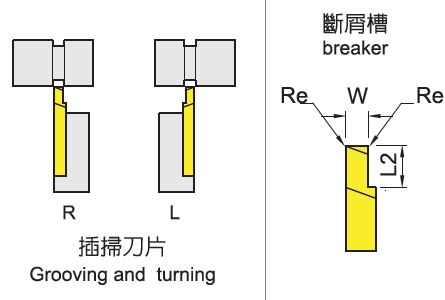

DKGR-4100-1025 4 1.0 0.1 2.5
DKGR-4150-1030 1.5 3.0
DKGR-4200-1040   2.0 4.0
DKGR-4250-1060   2.5 6.0
DKGR-4300-1080 3.0 8.0
DKGL-4100-1025 4 1.0 0.1 2.5
DKGL-4150-1030 1.5 3.0
DKGL-4200-1040 2.0 4.0
DKGL-4250-1060 2.5 6.0
DKGL-4300-1080   3.0 8.0

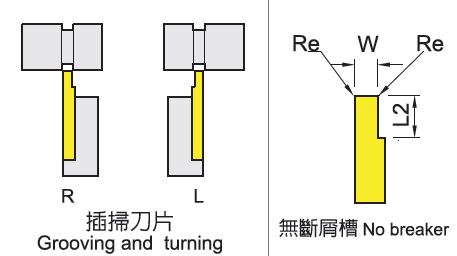

DKGR-4100-1025P   4 1.0 0.1 2.5
DKGR-4150-1030P   1.5 3.0
DKGR-4200-1040P   2.0 4.0
DKGR-4250-1060P   2.5 6.0
DKGR-4300-1080P     3.0 8.0



Werkstück material Stahl P
Edelstahl M
Gusseisen K
NE-Metall N
Form einfügen Beschreibung GRADE Abmessungen, mm
Beschichtetes Unbeschichtet
GT29 GA49 GX06 S W Re L2 K
DKBR-33005 3 3.0 0.05 8.5 35
DKBR-33010 0.1
DKBR-33020 0.2
DKBR-43005 4 3.0 0.05 8.5 35
DKBR-43010 0.1
DKBR-43020 0.2
DKBR-44005 4 4.0 0.05 8.5 35
DKBR-44010 0.1
DKBR-44020 0.2
DKBL-33005 3 3.0 0.05 8.5 35
DKBL-33010 0.1
DKBL-33020 0.2
DKBL-43005 4 3.0 0.05 8.5 35
DKBL-43010 0.1
DKBL-43020 0.2
DKBL-44005 4 4.0 0.05 8.5 35
DKBL-44010 0.1
DKBL-44020 0.2

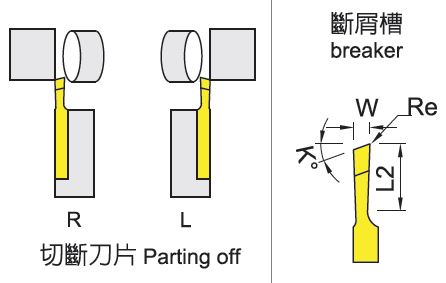

DKCR-3150R-1085 3 1.5 0.1 8.5 15
DKCR-3200R-10A5 2.0 10.5
DKCR-3250R-10A5 2.5
DKCR-3300R-10A5 3.0
DKCL-3150L-1085 3 1.5 0.1 8.5 15
DKCL-3200L-10A5 2.0 10.5
DKCL-3250L-10A5 2.5
DKCL-3300L-10A5 3.0

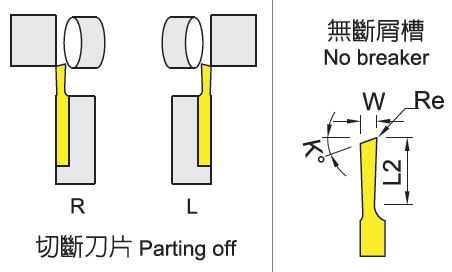

DKPR-3150R-1085 3 1.5 0.1 8.5 15
DKPR-3200R-10A5 2.0 10.5
DKPR-3250R-10A5 2.5
DKPR-3300R-10A5 3.0
DKPL-3150L-1085 3 1.5 0.1 8.5 15
DKPL-3200L-10A5 2.0 10.5
DKPL-3250L-10A5 2.5
DKPL-3300L-10A5 3.0
