especificaciones del producto
Shim shape Ordering code Dimensions,mm Purpose Weight
100pes/Kg
IC s B d1 d2
CMS432 12.5 4.8 12.5 7.3 8.0   0.88
CMS533 15.5 4.8 15.5 9.8 11.0 1.32
CPS422 12.4 3.2 12.4 6.9 9.0   0.62

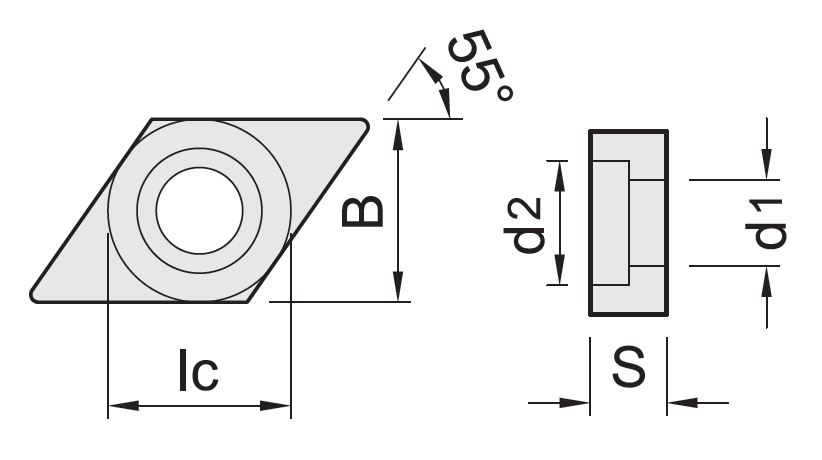

DMS432 12.5 4.8 12.5 7.3 8.1   1.18
DMS442 12.5 6.4 12.5 7.3 8.1 1.50
DPS422 12.5 3.2 12.5 7.0 8.7 0.78
GXE16 9.5 3.2 13.1 4.0 6.3   0.50
GXE22 12.7 4.0 17.1 5.1 7.3 1.06
GXE27 15.9 5.5 22.5 5.7 8.8 2.26

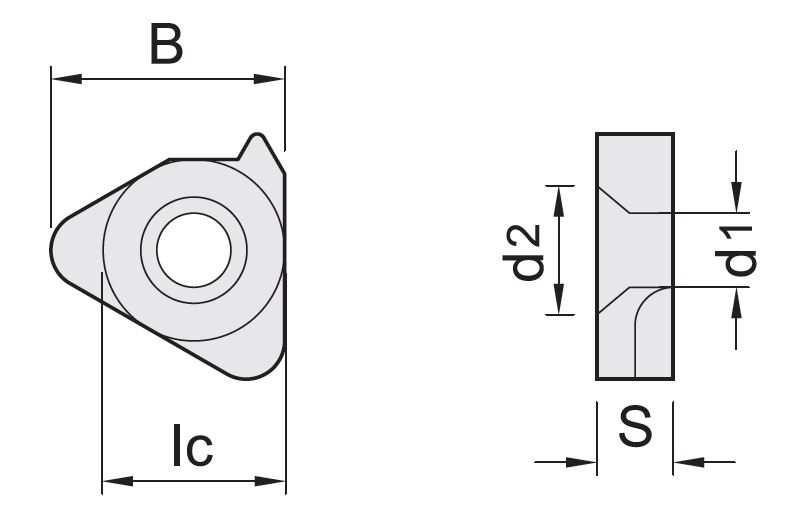

GXN16 9.5 3.2 13.1 4.0 6.3   0.48
GXN22 12.7 4.0 17.1 5.1 7.3 1.06
GXN27 15.9 5.5 22.5 5.7 8.8 2.26
SMS432 12.5 4.8 12.5 7.3 8.0   0.84
SSS445N 10.6 3.0 10.6 5.4 7.0   0.42
SSS445N-1 10.6 3.0 10.6 5.2 6.9 0.42
SSS490N 11.0 3.0 11.0 5.3 7.1   0.48
TMS322 9.1 3.2 12.9 5.8 6.3   0.46
TMS432 12.5 4.8 17.9 7.3 8.1 1.24
TPS322 9.3 2.7 13.2 5.0 8.0 0.42
TWS322 8.6 3.2 12.3 5.2 6.3 0.44
TWS332 8.9 4.8 12.4 5.2 6.3 0.64
VMS322 9.2 3.2 9.2 5.8 6.7   0.74

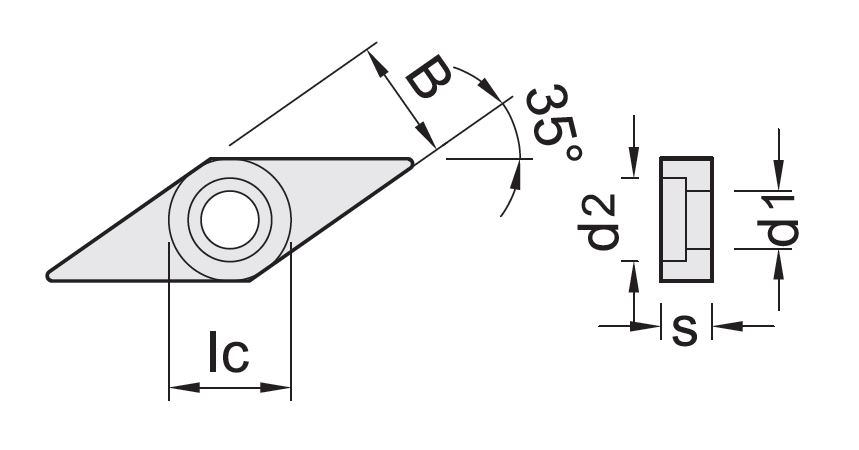

VSS322 8.4 3.2 8.6 5.4 6.7 0.54
WMS432 12.2 4.8 15.0 7.3 8.1   0.84


螺絲、壓板⋯等配件屬於消耗品，建議依據使用情況,適時更換。
It is recommended to replace the consumable parts (screw, clamp...etc.) at the proper time according to the situation.
