WEX - Fresas de corte

WEX - Fresas de corte

Añadir consulta
especificaciones del producto

 Metric specifications

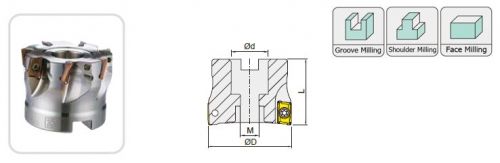

Item code Dimensions,mm Teeth Insert Screw Wrench
Weight
KG
無水孔Non-coolant 水孔coolant D d L M
WEX12-04006-16.0   40 16.0 40 9 6 AXMT1235.. MS3006A ETF09 0.25
WEX12-05007-22.0   50 22.0 40 11 7 0.38
WEX12-06308-22.0

    63

 22.0

 40

 11

 8

 0.79

WEXM17-04004-16.0   40 16.0 40 9 4 AXMT1705.. MS4009A ETF15 0.20
WEXM17-05005-22.0 NEW WEXM17-05005-A22.0  50 22.0 40 11 5 MS4011A 0.43
WEXM17-06306-22.0 NEW WEXM17-06306-A22.0  63 22.0 40 11 6 0.55
NEW WEXM17-08007-27.0  NEW WEXM17-08007-A27.0   80 27.0  50  13  7   1.09



Inch specifications

Item code Dimensions,mm Teeth Insert Screw Wrench Weight
KG
D d L M
WEX12-05007-25.4 50 25.4 50 13 7 AXMT1235.. MS3006A ETF09 0.50
WEX12-06308-25.4 63 25.4 50 13 8 0.79
WEX12-08010-25.4

 80

 25.4

 50

 13

 10

 1.22
WEXM17-06306-25.4 63 25.4 50 13 6 AXMT1705… MS4011A ETF15 0.79
WEXM17-08007-25.4 80 25.4 50 13 7 1.09
WEXM17-10008-31.75 100 31.75 63 45 8 1.85
WEXM17-12509-38.1 125 38.1 63 60 9 2.40

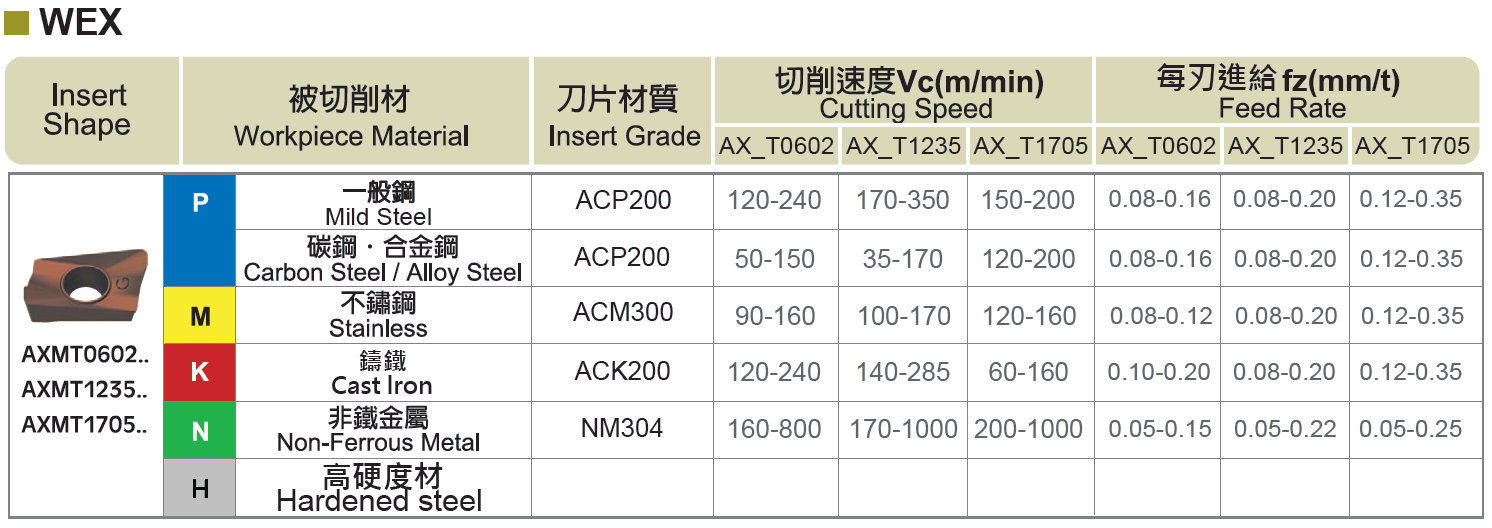

被切削材
Workpiece material		 Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層 Uncoated 無塗層
ACP200 ACK200 ACM300 H1 A B S Re
AXMT123504PEER-G       12 7 3.58 0.4
AXMT123508PEER-G       0.8
AXMT123504PEER-H         0.4
AXMT123508PEER-H     0.8
AXMT123504PEER-E       0.4
AXMT123504PEFR-S       0.4
AXMT123508PEFR-S       0.8
AXMT170504PEER-G       17.54 10.2 5.59 0.4
AXMT170508PEER-G     0.8
AXMT170508PEER-H         0.8
