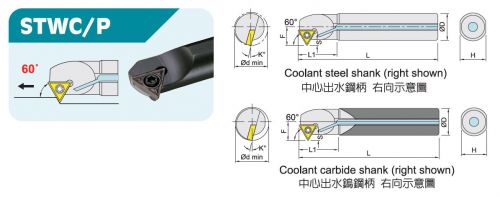

Barras de taladrado STWC / P

STWC / P Barras de taladrado

Añadir consulta
especificaciones del producto
Steel shank Item code Dimensions,mm Insert Spare parts Weight
(KG)
無水孔Non-coolant 水孔Coolant D L L1 F S H K° dmin
S0806K-STWBR/L-06-L15 A0806K-STWBR-06-L15　 8 125 15 4.5 1.5 7 15 9 TB..0601.. ① 0.07
S08K-STWCR/L-09 A08K-STWCR/L-09 8 125 23 6 2 7 15 11 TC..0902.. ② 0.07
S10K-STWCR/L-11 A10K-STWCR/L-11 10 125 23 7.5 2.5 9 15 13 TC..1102.. ③ 0.09
S12M-STWCR/L-11 A12M-STWCR/L-11 12 150 30 8.5 2.5 11 13 16 0.13
S14M-STWCR/L-11     A14M-STWCR/L-11　 14 150 30 9.5 2.5 13 11 18 0.18
S16Q-STWCR/L-11 A16Q-STWCR/L-11 16 180 35 10.5 2.5 15 10 20 0.28
S20R-STWCR/L-11 A20R-STWCR/L-11 20 200 40 12.5 2.5 18 7 25 0.49
S20R-STWCR/L-16 A20R-STWCR/L-16 20 200 40 14.5 4.5 18 8 26  TC..16T3..      ④  0.49
S25R-STWCR/L-16 A25R-STWCR/L-16 25 200 45 17 4.5 23 6 30 0.77
S32S-STWCR/L-16 A32S-STWCR/L-16 32 250 50 20.5 4.5 30 4 40 1.58
S08K-STWPR/L-08 A08K-STWPR/L-08 8 125 20 6 2 7 15 11 TP..0802.. ⑤ 0.07
S08K-STWPR/L-09 A08K-STWPR/L-09 8 125 23 6 2 7 15 11 TP..0902.. ⑥ 0.07
S10K-STWPR/L-09 A10K-STWPR/L-09 10 125 23 7.5 2.5 9 15 13 0.09
S10K-STWPR/L-11 A10K-STWPR/L-11 10 125 23 7.5 2.5 9 15 13 TP..1103.. ⑦ 0.09
S12M-STWPR/L-11 A12M-STWPR/L-11 12 150 30 8.5 2.5 11 13 16 0.13
S14M-STWPR/L-11 　 14 150 30 9.5 2.5 13 11 18 0.18
S16Q-STWPR/L-11 A16Q-STWPR/L-11 16 180 35 10.5 2.5 15 10 20 0.28
S20R-STWPR/L-11 A20R-STWPR/L-11 20 200 40 12.5 2.5 18 7 25 0.49
S20R-STWPR/L-1603 A20R-STWPR/L-1603 20 200 40 14.5 4.5 18 8 26 TP..1603.. ⑧ 0.49



Carbide shank Item code Dimensions,mm Insert Spare parts Weight
(KG)
無水孔Non-coolant 水孔Coolant D L L1 F S H K° dmin
C12M-STWCR-11   12 150 30 8.5 2.5 11.2 13 16 TC..1102.. ③ 0.24
C12Q-STWCR-11 E12Q-STWCR-11  12 180 30 8.5 2.5 11.2 13 16 0.29
C16R-STWCR-11   16 200 35 10.5 2.5 15.2 10 20 0.58
C08K-STWPR-09   8 125 23 6 2 7.2 15 11 TP..0902.. ⑥ 0.09
C12M-STWPR-11   12 150 30 8.5 2.5 11.2 13 16 TP..1103.. ⑦ 0.24



Insert Spare parts Screw Wrench

TB..0601.. ① MS2004A ETF06
TC..0902.. ② MS2205A ETF07
TC..1102.. ③ MS2506A ETF09
TC..16T3.. ④ MS4011A ETF15
TP..0802.. ⑤ MS2205A ETF07
TP..0902.. ⑥ MS2506A ETF09
TP..1103.. ⑦ MS3008A ETF09
TP..1603.. ⑧ MS4011A ETF15
