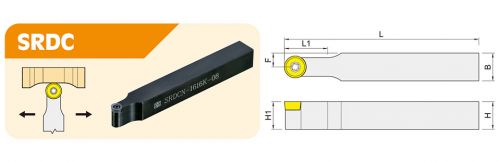

Portaherramientas SRDC

SRDC Portaherramienta para torneado exterior

Añadir consulta
especificaciones del producto
Item code Dimensions,mm Insert Screw Wrench Weight
(KG)
H
(H1)		 B L F L1 Screw Wrench
SRDCN-1010H-05 10 10 100 5 10.5 RC..0502.. MS2205A ETF07 0.08
SRDCN-1212K-05 12 12 125 6 10.5 0.15
SRDCN-1616K-05 16 16 125 8 10.5 0.26
SRDCN-2020K-05 20 20 125 10 10.5 0.41
SRDCN-2525M-05 25 25 150 12.5 10.5 0.77
SRDCN-1010K-06 10 10 125 5 12 RC..0602.. MS2506A ETF09 0.11
SRDCN-1212K-06 12 12 125 6 12 0.15
SRDCN-1616K-06 16 16 125 8 12 0.26
SRDCN-2020K-06 20 20 125 10 12 0.41
SRDCN-2525M-06 25 25 150 12.5 12 0.77
SRDCN-3.4H-06 9.5 12.7 100 6.35 13 0.09
SRDCN-1012H-08 10 12 100 6 12 RC..0803.. MS3008A ETF09 0.09
SRDCN-1212H-08 12 12 100 6 12 0.12
SRDCN-1212K-08 12 12 125 6 12 0.15
SRDCN-1616K-08 16 16 125 8 12 0.26
SRDCN-2020K-08 20 20 125 10 12 0.41
SRDCN-2525M-08 25 25 150 12.5 12 0.77
SRDCN-1212K-1003 12 12 125 6 20 RC..1003.. MS3008A ETF09 0.15
SRDCN-1616K-1003 16 16 125 8 20 0.26
SRDCN-2020K-1003 20 20 125 10 20 0.41
SRDCN-2525M-1003 25 25 150 12.5 20 0.77
SRDCN-3232P-1003 32 32 170 16 20 1.43
