fresa de extremo de radio, fresa de extremo de radio

ASRS Fresa de Extremo de Radio

Añadir consulta
especificaciones del producto

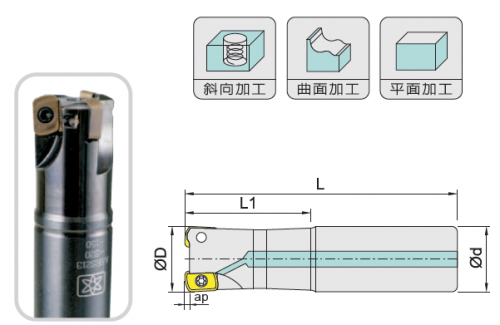

Item code Dimensions,mm Teeth Insert Spare parts Weight
KG
無水孔Non coolant 水孔Coolant D d L L1 ap
ASRS162-S16-150 ASRS162-A16-150　 16 16 150 25 1.5 2 EPMT0603TN-8 ② 0.24
ASRS162-S16-200 ASRS162-A16-200　 16 16 200 25 2 0.32
ASRS172-S16-150 　ASRS172-A16-150 17 16 150 25 2 0.24
ASRS172-S16-200 　 17 16 200 25 2 0.32
ASRS203-S20-150 ASRS203-A20-150 20 20 150 40 3 0.37
ASRS203-S20-200 ASRS203-A20-200 20 20 200 40 3 0.49
ASRS213-S20-150 ASRS213-A20-150 21 20 150 30 3 0.37
ASRS213-S20-200 ASRS213-A20-200 21 20 200 30 3 0.49
ASRS233-S20-150   23 20 150 28 3 0.37
ASRS254-S25-150 ASRS254-A25-150 25 25 150 40 4 0.58
ASRS254-S25-200 ASRS254-A25-200 25 25 200 40 4 0.77
ASRS264-S25-150 ASRS264-A25-150 26 25 150 35 4 0.58
ASRS264-S25-200 ASRS264-A25-200 26 25 200 35 4 0.77
ASRS324-S32-150 　 32 32 150 45 4 0.95
ASRS324-S32-200 　 32 32 200 45 4 1.26
ASRS324-S32-250 　 32 32 250 45 4 1.58
NEW  ASRS325-S32-150 NEW  ASRS325-A32-150 32 32 150 45 5 0.95
NEW  ASRS325-S32-200   32 32 200 45 5 1.26
ASRS355-S32-150 　 35 32 150 30 5 0.95
ASRS355-S32-200 　 35 32 200 30 5 1.26
ASRS355-S32-250 　 35 32 250 30 5 1.58



Insert Spare parts Screw Wrench Clamp Wrench
EPMT0603TN-8 ② MS2506B ETF09 -- --



編製CAM程序時，請將ASR設為圓弧頭銑刀，此時的近似刀尖圓弧半徑RE值及切削殘留量
When using the ASRS, please program the approximate radius as indicated. The approximate uncut portions for the program are as follows.
刀片大小
Item size		 近似RE(mm)
Approx. RE		 殘留量K(mm)
Remains
EP..-8 2.0 0.497



被切削材
Workpiece material		 Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRAD Dimensions,mm
Coated 塗層
JP4020 JS4160 JS4060 A B S Re
EPMT0603TN-8 10 6.35 3.18 8
EPMT0603EN-8LF
