MFH (Shank)

MFH (Shank)

Añadir consulta
especificaciones del producto
Item code Dimensions,mm Teeth Insert Spare parts Weight
KG

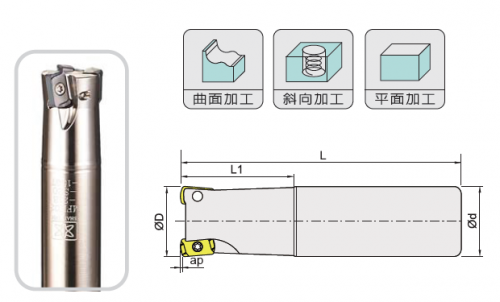

無水孔 Non-Coolant 水孔Coolant D d L L1 ap
MFH03-162-S16-150T   16 16 150 30 1.0 2 LOGU03… ① 0.24
MFH03-172-S16-150T   17 16 150 25 2 0.24
MFH03-203-S20-150T   20 20 150 35 3 0.37
NEW MFH03-204-S20-150T   20 20 150 35 4 0.37
MFH03-213-S20-150T   21 20 150 30 3 0.37
NEW MFH03-214-S20-150T   21 20 150 30 4 0.37
MFH03-254-S25-150T   25 25 150 40 4 0.58
MFH03-254-S25-200T   25 25 200 40 4 0.77
MFH03-264-S25-150T   26 25 150 35 4 0.58
MFH03-264-S25-200T   26 25 200 35 4 0.77
MFH03-325-S32-150T   32 32 150 50 5 0.95
MFH03-325-S32-200T   23 32 200 50 5 1.26
MFH03-335-S32-150T   33 32 150 40 5 0.95
MFH03-335-S32-200T   33 32 200 40 5 1.26



Insert Spare parts Screw Wrench
LOGU03… ① MS3007K ETF08



編製CAM程序時，請將MFH設為圓弧頭銑刀，此時的近似刀尖圓弧半徑RE值及切削殘留量
When using the MFH, please program the approximate radius as indicated. The approximate uncut portions for the program are as follows.
刀片大小
Item size		 近似RE(mm)
Approx. RE		 殘留量K(mm)
Remains
LOGU03 1.6 0.39



被切削材
Workpiece material		 Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層
PR1525 PR1510 QV330 MW913 A B S Re
LOGU030310ER-GM     11.9 6.2 3.96 1.0
LOGU030310ER-GMZ
LOGU030310ER-GS
