EXN (mango recto)

EXN (mango recto)

Añadir consulta
especificaciones del producto
Item code Dimensions,mm Teeth Insert Spare parts Weight
KG
Non-coolant Coolant D d L L1 ap
EXN3-I052-S05-32T   0.625 0.625 4 1.26 1.0 2 LNMU03 … ① 0.15
  EXN3-I052-A05-48T 0.625 0.625 6 1.58 2 0.22
EXN3-I062-S06-48T   0.75 0.75 6 1.58 2 0.34
EXN3-I063-S06-48T   0.75 0.75 6 1.58 3 0.34
EXN3-I084-S08-40T   1 1 5 1.58 4 0.49
EXN3-I105-S10-48T   1.25 1.25 6 1.77 5 0.90



Insert Spare parts Screw Wrench
LNMU03… ① MS2506E ETF08

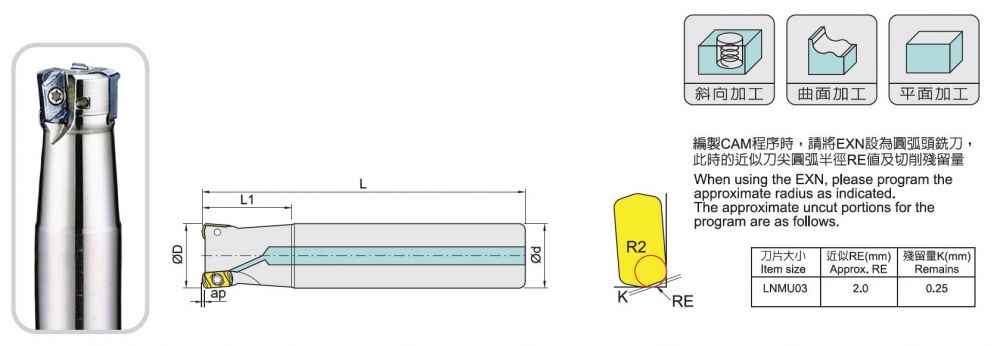

When compiling the CAM program, please set EXN as the arc head milling cutter, and the approximate tool nose arc radius RE value and cutting residual amount at this time.
When using the EXN, please program the approximate radius as indicated. The approximate uncut portions for the program are as follows.
Item size Approx. RE(mm) Remains K(mm)
LNMU03 2.0 0.25



Workpiece material Steel  P
Stainless steel  M
Cast iron  K
Non-ferrous metal  N

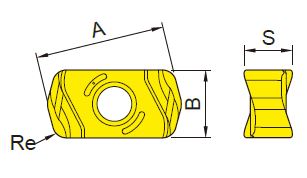

Insert Shape Description GRADE Dimensions,mm
Coated
AH725 AH130 A B S Re
LNMU0303-ZER-MJ 11.59 6 4.29 1.2
LNMU0303-ZER-ML
