Fresadora de 45 graus, moinho de face de 45 graus

45。Fresas de Face

Adicionar consulta

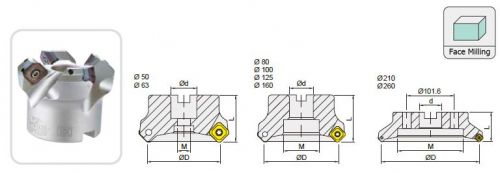

Especificações do produto

 Metric specifications

Item code Dimensions,mm Teeth 　　 Insert Weight
KG
Right hand Left hand D d L M
ASX445-050A03R-22.0 ASX445-050A03L-22.0 50 22.0 40 11 3 coarse SE..13T3..
WE..13T3..		 0.54
ASX445-063A04R-22.0 ASX445-063A04L-22.0 63 22.0 40 11 4 0.82
ASX445-080B04R-27.0 ASX445-080B04L-27.0 80 27.0 50 38 4 1.40
ASX445-100B05R-32.0 ASX445-100B05L-32.0 100 32.0 50 45 5 1.98
ASX445-125B06R-40.0 ASX445-125B06L-40.0 125 40.0 63 60 6 3.10
ASX445-160B07R-40.0 ASX445-160B07L-40.0 160 40.0 63 80 7 5.13
ASX445-050A04R-22.0 ASX445-050A04L-22.0 50 22.0 40 11 4 normal SE..13T3..
WE..13T3..		 0.50
ASX445-063A05R-22.0 ASX445-063A05L-22.0 63 22.0 40 11 5 0.76
ASX445-080B06R-27.0 ASX445-080B06L-27.0 80 27.0 50 38 6 1.31
ASX445-100B07R-32.0 ASX445-100B07L-32.0 100 32.0 50 45 7 1.89
ASX445-125B08R-40.0 ASX445-125B08L-40.0 125 40.0 63 60 8 3.01
ASX445-160B10R-40.0 ASX445-160B10L-40.0 160 40.0 63 80 10 4.99
ASX445-050A05R-22.0 ASX445-050A05L-22.0 50 22.0 40 11 5 close SE..13T3..
WE..13T3..		 0.50
ASX445-063A06R-22.0 ASX445-063A06L-22.0 63 22.0 40 11 6 0.80
ASX445-080B08R-27.0 ASX445-080B08L-27.0 80 27.0 50 38 8 1.30
ASX445-100B10R-32.0 ASX445-100B10L-32.0 100 32.0 50 45 10 1.86
ASX445-125B12R-40.0 ASX445-125B12L-40.0 125 40.0 63 60 12 2.97
ASX445-160B16R-40.0 ASX445-160B16L-40.0 160 40.0 63 80 16 4.88



Inch specifications

Item code Dimensions,mm Teeth 　　 Insert Weight
KG
Right hand Left hand D d L M
ASX445-R05003C-25.4 ASX445-L05003C-25.4 50 25.4 50 13 3 coarse SE..13T3..
WE..13T3..		 0.64
ASX445-R06304C-25.4 ASX445-L06304C-25.4 63 25.4 50 13 4 0.99
ASX445-R08004C-25.4 ASX445-L08004C-25.4 80 25.4 50 38 4 1.44
ASX445-R10005D-31.75 ASX445-L10005D-31.75 100 31.75 50 45 5 2.00
ASX445-R12506E-38.1 ASX445-L12506E-38.1 125 38.1 63 60 6 3.18
ASX445-R16007F-50.8 ASX445-L16007F-50.8 160 50.8 63 80 7 4.75
ASX445-R21008K-47.625 ASX445-L21008K-47.625 210 47.625 63 140 8 8.70
ASX445-R26010K-47.625 ASX445-L26010K-47.625 260 47.625 63 180 10 13.29
ASX445-R05004C-25.4 ASX445-L05004C-25.4 50 25.4 50 13 4 normal SE..13T3..
WE..13T3..		 0.61
ASX445-R06305C-25.4 ASX445-L06305C-25.4 63 25.4 50 13 5 0.96
ASX445-R08006C-25.4 ASX445-L08006C-25.4 80 25.4 50 38 6 1.35
ASX445-R10007D-31.75 ASX445-L10007D-31.75 100 31.75 50 45 7 1.91
ASX445-R12508E-38.1 ASX445-L12508E-38.1 125 38.1 63 60 8 3.09
ASX445-R16010F-50.8 ASX445-L16010F-50.8 160 50.8 63 80 10 4.60
ASX445-R21012K-47.625 ASX445-L21012K-47.625 210 47.625 63 140 12 8.53
ASX445-R26014K-47.625 ASX445-L26014K-47.625 260 47.625 63 180 14 13.12
ASX445-R05005C-25.4 ASX445-L05005C-25.4 50 25.4 50 13 5 close SE..13T3..
WE..13T3..		 0.61
ASX445-R06306C-25.4 ASX445-L06306C-25.4 63 25.4 50 13 6 0.99
ASX445-R08008C-25.4 ASX445-L08008C-25.4 80 25.4 50 38 8 1.34
ASX445-R10010D-31.75 ASX445-L10010D-31.75 100 31.75 50 45 10 1.89
ASX445-R12512E-38.1 ASX445-L12512E-38.1 125 38.1 63 60 12 3.05
ASX445-R16016F-50.8 ASX445-L16016F-50.8 160 50.8 63 80 16 4.49



Shim Screw Wrench Screw Wrench

SSS445N MDS05035S PL35 MS3512B ETF15



被切削材
Workpiece material		 Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層 Cermet
金屬陶瓷		 Cemented Carbide硬質合金
ACP200 NW948 NY942 H1 NM304 D S F Re
SEET13T3AGFN-L         13.4 3.97 2.5 --
SEMT13T3AGSN-H         13.4 3.97 2.5 --
SEGT13T3AGFN-JP         13.4 3.97 2.2 --
SEMT13T3AGSN-JH         13.4 3.97 1.9 1.5
WEEW13T3AGER8C           16.6 3.97 7.5 1.5
WEEW13T3AGTR8C         16.6 3.97 7.5 1.5
