ASS07(鎖牙式)

加入詢價車

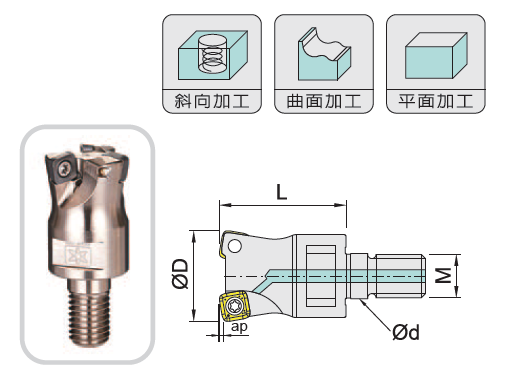

Item code Dimensions,mm Teeth Insert

Spare

parts

Weight
KG
無水孔Non-coolant 水孔Coolant D d L M
ASS07-202-MD18 ASS07-202-AMD18 20 10.5 30 M10 2 SP..07T2 0.07
ASS07-203-MD18 ASS07-203-AMD18 20 10.5 30 M10 3 0.07
ASS07-253-MD23 ASS07-253-AMD23 25 12.5 35 M12 3 0.13
ASS07-254-MD23 ASS07-254-AMD23 25 12.5 35 M12 4 0.13
ASS07-324-MD29 ASS07-324-AMD29 32 17.0 40 M16 4 0.27
ASS07-325-MD29 ASS07-325-AMD29 32 17.0 40 M16 5 0.27
ASS07-354-MD29 ASS07-354-AMD29 35 17.0 40 M16 4 0.35
ASS07-355-MD29 ASS07-355-AMD29 35 17.0 40 M16 5 0.35



Insert  Spare parts Screw Wrench
SP..07T2 MS3007C ETF10
SP..07T2 MS3008C ETF10



編製CAM程序時,請將ASS設為圓弧頭銑刀,此時的近似刀尖圓弧半徑RE值及切削殘留量
When using the ASS, please program the approximate radius as indicated. The approximate uncut portions for the program are as follows.
刀片大小
Item size
近似RE(mm)
Approx. RE
殘留量K(mm)
Remains
SP..07T2 2.0 0.62



被切削材
Workpiece material
Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層
JS4045 JM4160 JP4105 A S
SPNW07T2TR   7.8 2.8
SPMT07T2TR
SPMT07T2ER-LF
