KTKF走心式刀具

KTKF走心式刀具

加到詢價清單
產品規格
Item code Dimensions,mm Insert Screw Wrench Weight
(KG)

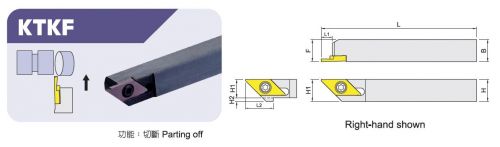

H(H1) B L F L1 L2 H2 Screw Wrench
KTKFR/L-1010K-12A 10 10 125 10 6 15 2 TKF12R/L.. MS4509TRV ETF10 0.10
KTKFR/L-1212M-12 12 12 150 12 -- -- 0.17
KTKFR/L-1616K-12 16 16 125 16 -- -- 0.25
KTKFR -1010K-16 10 10 125 10 8 29 2 TKF16R/L.. MS4509TRV ETF10 0.10
KTKFR/L-1010K-16A 10 10 125 10 20 2 0.10
KTKFR/L-1212M-16 12 12 150 12 -- -- 0.17
KTKFR/L-1616K-16 16 16 125 16 -- -- 0.25
KTKFR/L-2020K-16 20 20 125 20 -- -- 0.39
KTKFR/L-2525M-16 25 25 150 25 -- -- 0.47



被切削材
Workpiece material		 Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層
PR1025 W A K H S Re
TKF12R050-S-16DR   0.5 2.5 16 8.7 3 0.03
TKF12R070-S-16DR 0.7 4
TKF12R100-S-16DR 1.0 6
TKF12R150-S-16DR 1.5
TKF12L150-S-16DR 1.5
TKF12R200-S-16DR   2.0
TKF16R150-S-16DR   1.5 8 16 9.5 4 0.05
TKF16R200-S-16DR 2.0
TKF16L200-S-16DR 2.0
