GWV鎖牙式球刀

GWV(鎖牙式)球刀

加入詢價車

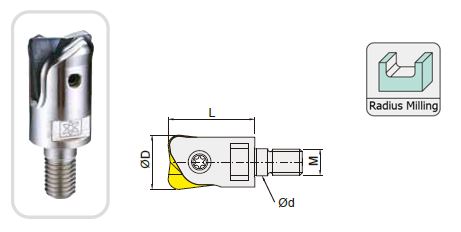

Item code Dimensions,mm Teeth Insert Screw Wrench Weight
KG
D d L M
GWV20-MD18 20 10.5 30 M10 1 WPV 20-N-Slst MGR5020 ETL20 0.07
GWV25-MD23 25 12.5 40 M12 1 WPV 25-N-Slst MGR6025 ETL30 0.15



被切削材
Workpiece material
Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層
GA45 D
+0
-0.03
S d1 L
WPV 12-N-Slst 12 2.5 5 1.0
WPV 16-N-Slst 16 3.0 5 1.0
WPV 20-N-Slst 20 3.0 5 1.6
WPV 25-N-Slst   25 4.0 6 2.0
