RD刀盤式圓刃銑刀

RD(刀盤式)圓刃銑刀

加到詢價清單
產品規格

Metric specifications

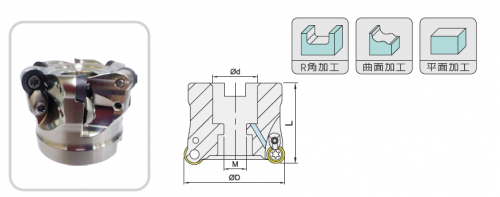

Item code Dimensions,mm Teeth Insert Spare parts Weight
KG
無水孔Non-coolant 水孔Coolant D d L M
RD103-D425-16.0 RD103-D425-A16.0 42 16.0 40 9 5 RD..1003.. ⑧ 0.29
RD103-D504-22.0   50 22.0 40 11 4 0.37
RD103-D505-22.0   50 22.0 40 11 5 0.35
RD103-D526-22.0 RD103-D526-A22.0 52 22.0 40 11 6 0.39



Inch specifications

Item code Dimensions,mm Teeth Insert Spare parts Weight
KG
無水孔Non-coolant 水孔Coolant D d L M
RD103-D504-25.4   50 25.4 50 13 4 RD..1003.. ⑧ 0.43
RD103-D505-25.4   50 25.4 50 13 5 0.42
RD103-D635-25.4   63 25.4 50 13 5 0.67
RD103-D636-25.4   63 25.4 50 13 6 0.67
RD103-D666-25.4   66 25.4 50 13 6 0.69
RD103-D806-25.4   80 25.4 50 13 6 0.94



Insert Spare parts Screw Wrench Clamp Wrench
RD..1003.. ⑧ MS3509A -- MC35-3V ETF15



被切削材
Workpiece material		 Steel 鋼 P
Stainless steel 不鏽鋼 M
Cast iron 鑄鐵 K
Non-ferrous metal 非鐵金屬 N
Insert Shape Description GRADE 材質 Dimensions,mm
Coated 塗層 Uncoated 無塗層
TW951 GX03 HF7 Ic S d1
RDMW1003MO     10 3.18 4.4
RDHT1003AL     10 3.18 4.4
RDHT1003MO-FA     10 3.18 4.4
