SVVB/C..CL內徑車刀

SVVB/C..CL內徑車刀

加到詢價清單
產品規格

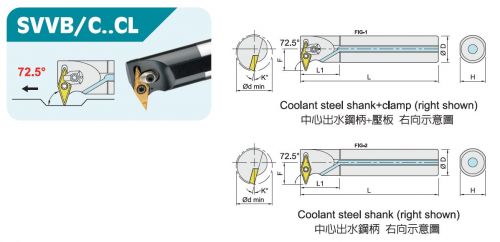

FIG-1 Steel shank Item code Dimensions,mm Insert Spare parts Weight
(KG)
無水孔Non-coolant 水孔Coolant D L L1 F H K° dmin
S16Q-SVVBR/L-11CL A16Q-SVVBR/L-11CL 16 180 35 13 15 6 25 VB..1103.. ① 0.28
S20R-SVVBR/L-11CL A20R-SVVBR/L-11CL 20 200 38 16 18 5 32 0.49
S25R-SVVBR/L-16CL A25R-SVVBR/L-16CL 25 200 45 20.5 23 5 34 VB..1604.. ② 0.77
S25S-SVVBR/L-16CL A25S-SVVBR/L-16CL 25 250 45 20.5 23 5 34 0.96
S32S-SVVBR/L-16CL A32S-SVVBR/L-16CL 32 250 50 25.5 30 5 42 ③ 1.59
S16Q-SVVCR/L-11CL A16Q-SVVCR/L-11CL 16 180 35 13 15 6 25 VC..1103.. ① 0.28
S20R-SVVCR/L-11CL A20R-SVVCR/L-11CL 20 200 38 16 18 5 32 0.49
S25R-SVVCR/L-16CL A25R-SVVCR/L-16CL 25 200 45 20.5 23 5 34 VC..1604.. ② 0.77
S25S-SVVCR/L-16CL A25S-SVVCR/L-16CL 25 200 45 20.5 23 5 34 0.96
S32S-SVVCR/L-16CL A32S-SVVCR/L-16CL 32 250  50  25.5  30  5  42  ③ 1.59



Insert Spare parts Shim Screw Wrench Screw Wrench Clamp Wrench

VB/VC..1103.. ① -- -- -- MS2506A ETF09 MC35-3V ETF15
VB/VC..1604.. ② -- -- -- MS3509B -- MC35-3V ETF15
VB/VC..1604.. ③ VSS322 MDS05035S PL35 MS3512B -- MC35-3V ETF15
