SMALR走心式刀具

SMALR走心式刀具

加入询价车
Ordering code Dimensions,mm Insert Screw Wrench Weight
(KG)
H(H1) B L L1 F Screw   Wrench
SMALR-1010K-3 10 10 125 27 10 MAGR3.. MS4009A ETF15 0.10
SMALR-1212K-3 12 12 125 27 12 MS4011A 0.14
SMALR-1616K-3 16 16 125 27 16 0.25
SMALR-2020K-3 20 20 125 27 20 0.39





被切削材
Workpiece material
Steel 钢 P
Stainless steel 不锈钢 M
Cast iron 铸铁 K
Non-ferrous metal 非铁金属 N
Insert Shape Description GRADE 材质 Dimensions,mm
Coated 涂层
1025 GA46 W A S RE

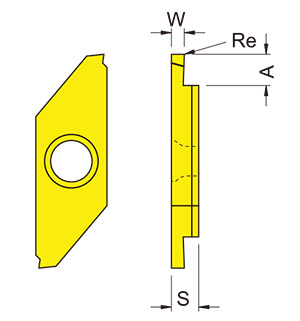

Insert Shape
MAGR3050     0.50 1.3 3.18 0.05
MAGR3075     0.75 2.5
MAGR3100     1.00 2.7
MAGR3125     1.25
MAGR3150   1.50 3.7
MAGR3175     1.75
MAGR3200     2.00
MAGR3250     2.50
