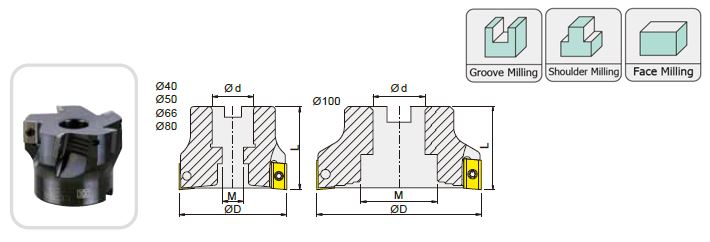

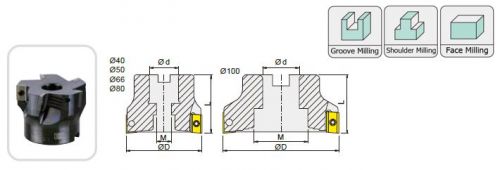

UEX刀盘式端铣刀

UEX(刀盘式)端铣刀

加入询价车



Metric specifications

Item code Dimensions,mm Teeth Insert Screw Wrench Weight
KG
D d L M Screw Wrench
UEX403-22.0 40 22.0 40 11 3 ADET160308 MS4011A ETF15 0.25
UEX504-22.0 50 22.0 50 11 4 0.49



Inch specifications

Item code Dimensions,mm Teeth Insert Screw Wrench Weight
KG
D d L M Screw Wrench
UEX504-25.4 50 25.4 50 13 4 ADET160308 MS4011A ETF15 0.44
UEX665-25.4 66 25.4 50 13 5 0.79
UEX806-25.4 80 25.4 50 13 6 1.12
UEX1007-31.75 100 31.7 50 45 7 1.48




被切削材
Workpiece material
Steel 钢 P
Stainless steel 不锈钢 M
Cast iron 铸铁 K
Non-ferrous metal 非铁金属 N
Insert Shape Description GRADE 材质 Dimensions,mm
Coated 涂层 Uncoated 无涂层
HC844 WH10 A B S RE d1 θ°
Insert Shape APET120204ER
  12.7 7.938 2.5 0.4 3.8 11
APET120208ER   12.7 7.938 2.5 0.8 3.8 11
APET160304ER


15.875

9.525

3.18

0.4

4.4

15

APNT120208SR   12.7 7.938 2.5 0.8 3.8 11
ADNT160308SR   12.875 9.525 3.18 0.8 4.4 15
