MEC锁牙式端铣刀

MEC(锁牙式)端铣刀

加入询价清单
Item code Dimensions,mm Teeth Insert Screw Wrench Weight
KG

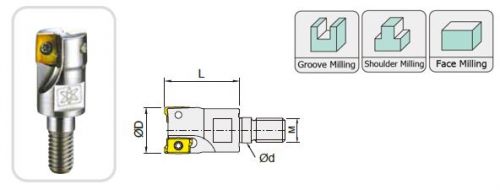

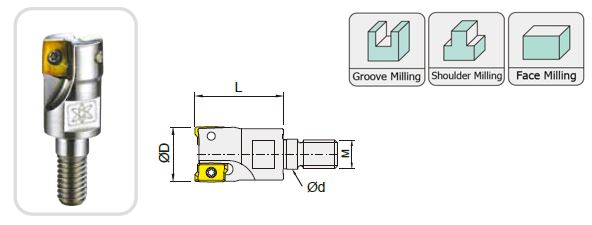

D d L M Screw Wrench
MEC07-102-MD10 10 5.5 16 M5 2 BDMT0703.. MS2004C ETF06 0.01
MEC07-112-MD10 11 5.5 16 M5 2 0.01
MEC07-122-MD11 12 6.5 18 M6 2 0.01
MEC07-132-MD11 13 6.5 18 M6 2 0.02

MEC11-162-MD14 16 8.5 25 M8 2 BDMT11T3.. MS2506A ETF09 0.04
MEC11-172-MD14 17 8.5 25 M8 2 0.04
MEC11-203-MD18 20 10.5 30 M10 3 0.07
MEC11-213-MD18 21 10.5 30 M10 3 0.7
MEC11-253-MD23 25 12.5 35 M12 3 0.14
MEC11-263-MD23 26 12.5 35 M12 3 0.14
MEC11-324-MD29 32 17 43 M16 4 0.29
MEC11-325-MD29 32 17 43 M16 5 0.29
MEC11-334-MD29 33 17 43 M16 4 0.29







被切削材
Workpiece material
Steel 钢 P
Stainless steel 不锈钢 M
Cast iron 铸铁 K
Non-ferrous metal 非铁金属 N
Insert Shape Description GRADE 材质 Dimensions,mm
Coated 涂层
PR830 PR905 A B S RE
BDMT070302ERJT   6.7 4.7 2.6 0.2
BDMT070304ERJS     0.4
BDMT11T302ERJT O   11 6.7 3.8 0.2
BDMT11T304ERJT   0.4
BDMT11T308ERJT   0.8
BDMT11T304ERJS O O 0.4
