PPHT锁牙式球刀

PPHT(锁牙式)球刀

加入询价清单

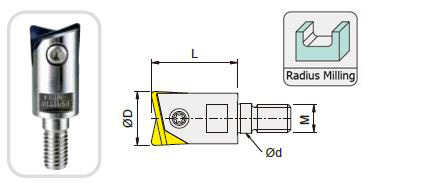

Item code Dimensions,mm Teeth Insert Screw Wrench Weight
KG
D d L M
PPHT12-MD11 12 6.5 22 M6 1 SUFT12R10.. DVF6242 ETF10 0.03
PPHT16-MD14 16 8.5 28 M8 1 SUFT16R10.. DVF6244 ETL15 0.04
PPHT20-MD18 20 10.5 30 M10 1 SUFT20R15.. DVF6246 ETL20 0.07





被切削材
Workpiece material
Steel 钢 P
Stainless steel 不锈钢 M
Cast iron 铸铁 K
Non-ferrous metal 非铁金属 N
Insert Shape Description GRADE 材质 Dimensions,mm
Coated 涂层
NW948 JC8015 D S L RE
SUFT12R10   12 3 10 1.0
SUFT16R10   16 4 12 1.0
SUFT20R10   20 5 15 1.5

RNM-120-R10   O 12 3 10 1.0
RNM-160-R10   O 16 4 12 1.0
RNM-200-R15   O 20 5 15 1.5
